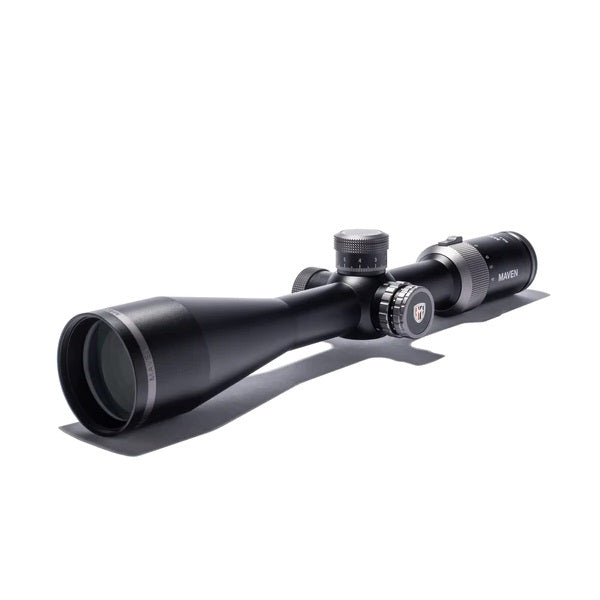

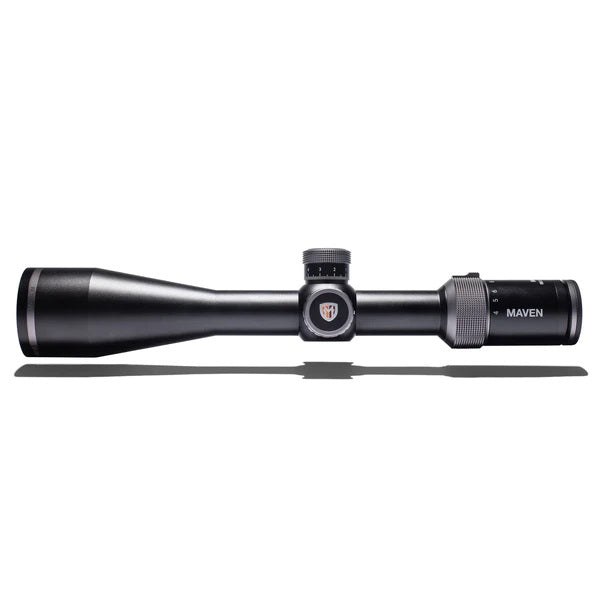

MAVEN RS5 Riflescope 4 - 24x50 SFP

The new Maven RS.5 4-24x50mm SFP - built for those who require the precision of long range dialing with the fine reticle benefits of a second focal plane.

  • Premium Model
  • Size:  14.4 in.
  • Weight:  25.5 oz.
  • Second Focal Plane
  • 0.25 MOA/click or 0.1 MRAD/click
  • No-Shim Reset-able Zero Stop

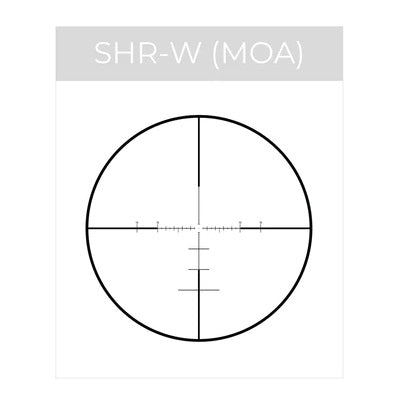

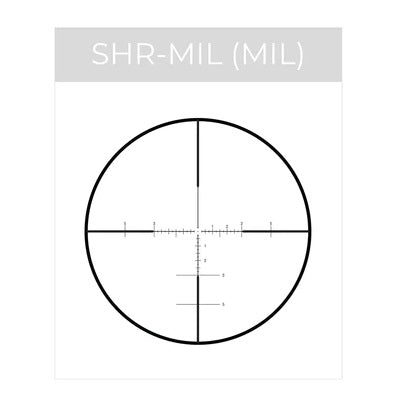

  • 2 reticle options: SHR-W (MOA), SHR-W (MIL)
  • 10 Level Red Reticle Illumination
  • 30mm Tube
  • Extra-Low Dispersion ED Glass
  • Exceptionally Clear, Bright, High Contrast Image
  • Excellent Color Fidelity
  • Phase Correction Coating
  • Waterproof and Fog Proof
  • Includes Neoprene Cover
  • Lifetime Warranty
  •

    When we evaluated our RS Series lineup, a common refrain we heard from our customer base was the need for a solid long range scope that combined features of our top scopes in a second focal plane optical system that allowed for an easy-to-see reticle at all magnifications - enter the RS.5 4-24x50mm SFP.

    For those seeking a long distance build that features broad magnification range, large tube diameter, large objective, and desire a straightforward and uncomplicated configuration, the RS.5 covers the bases both inside and out. Featuring both MOA and MIL reticle options, illuminated reticles, side parallax adjustment, robust dial-to-shoot elevation turret, capped windage turret, and mechanical zero stop, the RS.5 ensures the precision you’ve come to expect in a Maven rifle scope.

    With an extensive magnification range and flexible elevation dialing, the RS.5 is our recommended rifle scope for long range hunters and shooters alike.

    Just like all rifle scopes in the RS Series lineup, the RS.5 features crystal clear ED glass for exceptional clarity, smooth focus, precision-milled adjustments, solid click detents, and durable anodizing to resist heavy use.

    The Maven RS Series represents our elite line of rifle scopes, designed to fit your specific needs, delivered for a fraction of the cost to comparable rifle scopes and stacks up with the most celebrated and expensive scopes in the world. Our modern sportsman inspired designs paired with the best available materials and state of the art technology create an uncompromising optic that meets the demands of the modern hunter.



    RS.5 MOA
    RS.5 MIL
    Focal plane Second
    Magnification range 4x - 24x
    Obj. lens diameter 50mm
    Tube diameter
    30mm / 1.8in

    Objective outer diameter
    59mm

    Eyepiece outer diameter 43.6mm
    Overall length 366mm / 14.41in
    Weight (without battery) 25.5oz / 723g
    Internal adjustment range (MOA/MIL)
       Travel Elevation 100 MOA
    29 MIL
       Travel Windage 70 MOA 20.3 MIL
    Click value 0.250 MOA 0.1 MIL
    Adjustment per turret revolution 20 MOA

    10 MIL
    Parallax adjustment 10y - Infinity



    Exit pupil diameter @4x: 8.5mm @24x: 2.1mm
    Eye relief @4x: 77-98mm @24x: 86-98mm
    Field of view @ 100y @4x: 27.8ft @24x: 4.6ft
    Front/Rear mounting length F: 53mm R: 52mm
    Effective objective lens diameter @4x: 34.5mm
    @24x: 50.0mm
    Field of view @4x: 5.31°
    @24x: 0.88°
    Field of view, apparent
    @4x: 21°


    @24x: 21°
    Diopter correction (dpt) +/-3
    Light transmission 90.10%

    Twilight factor
            @4x: 14.1
    @24x: 34.64
    Functional temperature
    -4°~158°F

    Submersion tightness / waterproof rating 3m depth
    Gas purged Nitrogen
    Reticle construction Etched Glass
    Reticle options SHR-W

    SHR-MIL
    Illuminated reticle Y/N Yes Red
    Origin Made in Japan
